quiet clean power.
Anywhere.
R5
Mobile Power Unit
Quiet: Noise-free operation (<10dBA) for indoor, outdoor, on-vehicle, urban and remote use, anytime of day or night.
Clean: No exhaust (CO, CO2, NOx, particulate matter) for safe operation in confined spaces and near people. Flexibly recharge from solar, 120VAC or 240VAC - or multiple simultaneously.
Power: 4000W (5HP) dual 120VAC/240VAC output, 5kWh onboard energy, 7000 cycle LiFePO4 battery, USB Type A + C, fully recharge in 2-4 hours.
Anywhere: Ruggedized, weather resistant, transportable (220 lb, 32 x 25 x 17 in), wheels and flip-out handles, onboard storage compartment for cables.
*Eligible for up to 40-60%+ Federal Investment Tax Credit. Consult your tax professional.
MADE IN THE USA.
-
Zero-emissions, quiet operation
4,000 W pure sine wave power (7,000 W peak 5 seconds)
5,000 Wh energy capacity
7,000 cycle replaceable battery, 100% depth of discharge
Onboard MPPT solar charging up to 2,000W input
3 x 120V outlets (3-pin)
1 x 240V outlets (L14-30R 30A)
3 x USB Type A outlets
2 x USB Type C outlets
Parallel port to expand energy
Global 60Hz / 50Hz selectable
17.5L onboard storage for cables
Rugged design (IP54)
Mobility with 4 x wheels, 4 x handles
32 in x 25 in x 17 in (813 mm x 635 mm x 432 mm)
220 lbs (100 kg)
UL1973, EN/IEC 62109-1, CSA C22.2, No. 107.1-01 UL1741 Ed.2, FCC Part 15 Class B
Designed and manufactured in USA
recharge while operating

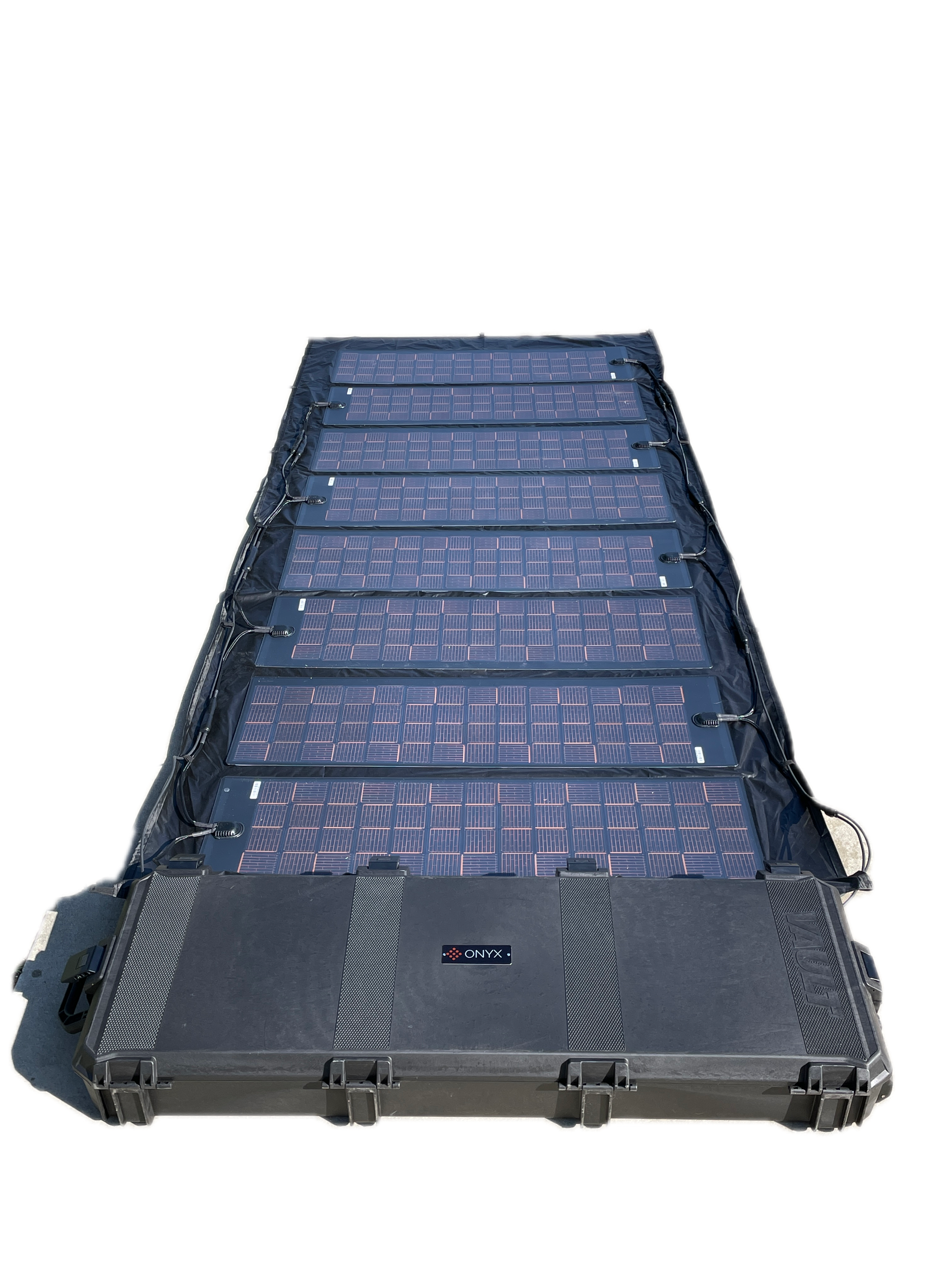

M5
Mobile Solar
Rugged: Impact resistant, industrial grade solar panels, outdoor-rated IP67 case.
Mobile: Single person carry with handles and wheels, easy vehicle load in/out, compact storage case and easy fold out for use.
Solar: 550W output, high efficiency, flexible solar array.
Plug & Play: Recharge R5 while operating outdoors, increase solar recharging with multiple M5 units per R5.
*Eligible for up to 40-60%+ Federal Investment Tax Credit when purchased with R5. Consult your tax professional.
MADE IN THE USA
-
Cell Type: Monocrystalline
Efficiency: 21%
Maximum Rated Power (Pmax): 550 Watts
Typical Power (Ptyp)**: 400 Watts +/- 10%
Voltage at Maximum Power (Vmp): 87.5 VDC
Current at Maximum Power (Imp): 5.76 Amps
Open Circuit Voltage (Voc): 95.0 VDC
Short Circuit Current (Isc): 6.08 Amps
Weight: 20 kg (44 lbs)
Dimensions Folded & Stored: 53” x 16” x 6.12”
Dimensions Deployed: 45” x 120” x 0.5”
Maximum allowable bend: 30°
Ingress Protection: IP67 when latched shut
Power Coefficient: -0.38 %/°C
Voltage Coefficient: -60.8 mV/°C
Current Coefficient: 2.20 mA/°C
Max Power Tolerance: +/- 5%
Operating Temperature Limits: 0 – 40°C / 32 – 104°F
Expandable Capacity: 4x can be paralleled via MC4 joining cables for up to 2,000 watts of power
Connector Type: SAE to R5 / R6; MC4 to expand to multiple M5
Designed and manufactured in USA
run for days or weeks
x10
Large Expansion Battery
Plug & Play: Connect X10 directly to R5 to triple the run time.
Expandable: 10kWh capacity, no limit to number of X10 and/or X5 added in parallel.
Anywhere: High capacity, ruggedized IP67 rating, weather resistant, readily transportable with wheels and flip-out handles (215 lb, 32 in x 25 in x 17 in).
*Eligible for up to 40-60%+ Federal Investment Tax Credit when purchased with R5. Consult your tax professional.
MADE IN THE USA
-
10,000 Wh
7,000 cycle
32 in x 25 in x 17 in (813 mm x 635 mm x 432 mm)
215 lbs (98 kg)
x5
Compact Expansion Battery
Plug & Play: Connect X5 directly to R5 to double the run time.
Expandable: 5kWh capacity, no limit to number of X5 and/or X10 added in parallel.
Anywhere: Compact size, ruggedized IP67 rating, weather resistant, readily transportable with wheels and flip-out handles (104 lb, 25 in x 20 in x 13 in).
*Eligible for up to 40-60%+ Federal Investment Tax Credit when purchased with R5. Consult your tax professional.
MADE IN THE USA
-
5,000 Wh
7,000 cycle
25 in x 20 in x 13 in (635 mm x 508 mm x 330 mm)
104 lbs (47.3 kg)
instant mobile NANO-grid
One R5 can power up to 4.0kW.
Adding one or more M5 keeps the R5 charged and provides potentially unlimited energy*.
*Unlimited energy under certain conditions: sufficient solar irradiance, direct sunlight, correct panel orientation and energy draw limited to energy available.
Up to four (4) M5 can be connected to a R5 to increase solar power up to 2,000W.
Use our calculator to learn how to achieve unlimited energy.
expandable mobile nano-grid
To power devices longer, multiple R5, X10, and/or M5 can be connected**.
When linked the R5, X10, and/or M5 expanded nanogrid can achieve unlimited energy with the correct conditions*.
Up to four (4) M5 can recharge each R5 at a max 2,000W, even while powering devices.
*Unlimited energy under certain conditions: sufficient solar irradiance, direct sunlight, correct panel orientation and energy draw limited to energy available.
Up to four (4) M5 can be connected to a R5 to increase solar power up to 2,000W.
Use our calculator to learn how to achieve unlimited energy.
**Each R5 can output up to 4.0kW. When R5 and/or X10 are linked, energy capacity is multiplied but power output per R5 remains at 4.0kW.
